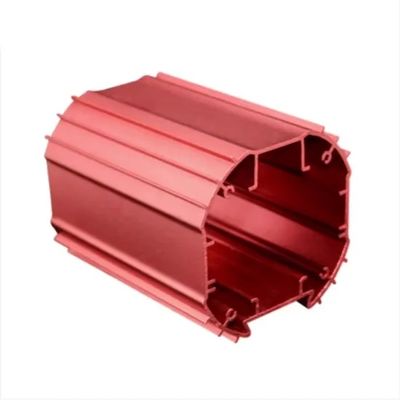

Precision CNC Machining Rivet Punching Aluminum Extrusion Profile with 6000 Series Grade and 6063 Alloy

Gambar besar : Precision CNC Machining Rivet Punching Aluminum Extrusion Profile with 6000 Series Grade and 6063 Alloy

Detail produk:

Sertifikasi:	ISO
Dokumen:	Brosur Produk PDF

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	100
Harga:	1.99

Kontak

Detil Deskripsi produk

Model No.:	kandang aluminium	Jenis:	Profil aluminium industri, kandang aluminium
Membentuk:	disesuaikan	Nilai:	Seri 6000
Melunakkan:	T3-T8	Paduan:	Paduan
Finishing permukaan:	Oksidasi Anodik	Bahan Paduan:	6063
Perawatan permukaan:	Anodized	Pengolahan:	CNC Milling
Kekuatan tarik:	≥ 160MPA (T5), ≥ 205MPA (T6)	Kekuatan luluh:	≥ 110MPA (T5), ≥ 180MPA (T6)
Pemanjangan:	≥ 8%	Kapasitas produksi:	100000 ton/ tahun
Kapasitas Ekstruder:	Unit 6800 ton
Menyoroti:	6000 Series Grade Aluminum Extrusion Profile , 6063 Alloy Aluminum Extrusion Profile , T3-T8 Temper Aluminum Extrusion Profile

Precision CNC Machinery Rivet Punching Aluminum Extrusion Enclosure Profile

Metalplus specializes in aluminum industrial profile design and manufacturing with a production base of more than 100,000 square meters and annual capacity exceeding 100,000 tons.

Key Specifications:

Material: Aluminum alloy 6063, 6061, 6082, 6005 or custom requirements
Temper: T5, T6
Quality standard: GB5237-2008
Surface treatment: Mill finish, anodized, powder coated, electrophoresis, sand blasting, PVDF coating, wood grain painting
Available colors: Silver, Bronze, Champagne, Matte, Natural for anodizing, RAL for powder coating
Packing: Protective film inside and shrinking film outside
Production Capacity: 100,000 tons/year
MOQ: 1 TON
Delivery: 20 days after deposit

Product Advantages

Superior Heat Dissipation: Aluminum alloy maintains optimal temperature during continuous operation
Lightweight Construction: Reduces overall product weight for easier transportation and installation
Excellent Plasticity: Better ductility than steel or cast iron for complex designs
Durable Performance: Waterproof, dustproof, corrosion resistant with long service life
Environmentally Friendly: Energy efficient production with recyclable materials

Technical Specifications

Chemical Composition

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Impurity	Al
6063	0.2-0.6	0.35	0.1	0.1	0.45-0.9	0.1	0.1	0.1	0.15	Rest
6061	0.4-0.8	0.7	0.15-0.4	0.15	0.8-1.2	0.04-0.35	0.25	0.15	0.15	Rest

Mechanical Properties

Alloy	Temper	Tensile Strength	Yield Strength	Elongation
6063	T5	≥ 160Mpa	≥ 110Mpa	≥ 8%
6063	T6	≥ 205Mpa	≥ 180Mpa	≥ 8%

Technical Support

Custom design services including CAD drawings and 3D models
Professional R&D team for design optimization and cost reduction
Complete production process from design to surface treatment
Strict quality control throughout manufacturing

Production Capabilities

Extrusion

44 aluminum extrusion lines with maximum outer diameter capacity of 350mm, including a 6800 ton extruder for profiles up to 600mm diameter.

Anodizing

6 anodizing production lines with uniform oxidation film thickness and multiple color options including silver, black, gold, and champagne.

Painting

4 powder spraying lines using high-quality Swiss Gema spray nozzles with environmentally friendly paints.

CNC Machining

12 PRATIC machining centers for complex profile processing
30 punching machines (50-100 ton capacity)
10 stretch bending machines for precise angle bending
10 milling machines for various plane and groove machining

Quality Assurance

Strict industrial standards throughout production with professional inspection teams ensuring consistent quality across all batches.

Certifications
